Input/Output

I/O Setup

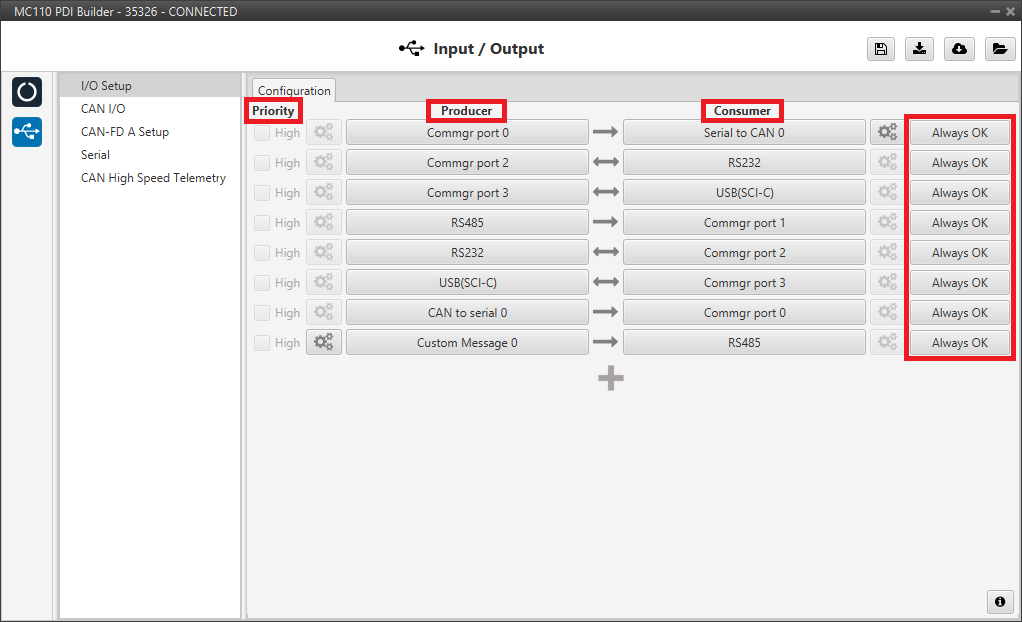

In this panel the user can establish the relationship between a determined signal with a I/O port and the duties they are performing. This allows users to configure external sensors, custom messages, etc.

• Priority: Connections between I/O ports can be marked with high priority with this checkbox. If enabled, they will run at high frequency: 1000 Hz.
• Producer: Functions for creating and sending messages.
• Consumer: Functions for receiving and parsing messages.

• Bit: This assigns each connection a bit in a way that allows this connection to be activated/deactivated depending on the status of the selected bit. By default, the 'Always Ok' bit is set to all connections so that they are always active.

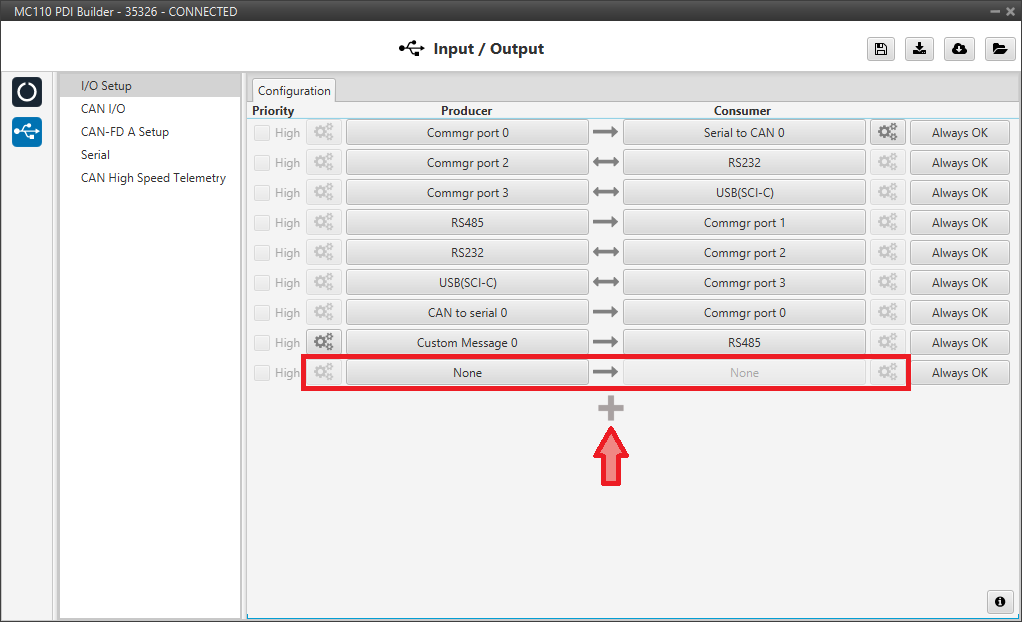

• Add a New Row: Press the + button at the bottom of the connections list to add a new connection. A new empty row will appear with "None" set for both Producer and Consumer.

Firstly, user has to configure the Producer selecting the I/O port or information to use. Later, user has to configure the Consumer by clicking on an element, a new window will be displayed to select an item. The relationship between them can be unidirectional (Bind ) or bidirectional (Bind Bidirectional ), the last enables a port to receive or send information.

The following I/O ports are available:

Field	Description
RS232	Serial Port 232 (SCI-B)
RS485	Serial Port 485 (SCI-A)
USB (SCI-C)	USB Port
Commgr port	COM Manager ports send and receive VCP messages. This is the protocol used by Veronte products to communicate. For more information on VCP, read the VCP user manual
Custom Message producer	This allows user to send a serial custom message, see Serial custom messages section
CAN to serial / Serial to CAN	Serial to CAN sends serial streams over a CAN Bus / CAN to serial undoes the transformation 'Serial to CAN'

More information about some elements can be found in the following sections.

Serial Custom Messages

It is possible to configure the messages sent through the serial port and its conversion to system variables by selecting the option Custom Message and configuring the I/O port.

To configure a serial custom message, the user must follow the next steps:

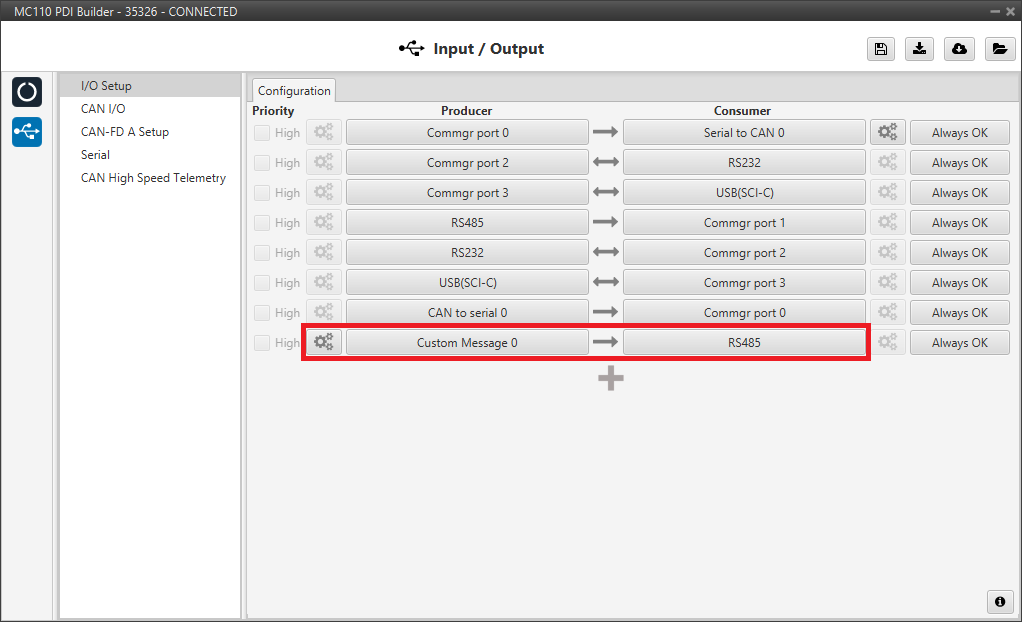

1. Press the configuration button ( icon) and a pop-up window will be displayed.

   In this window press the icon to add a custom message, the user can choose between System variables, ADSB Vehicle or External Sensor.



   Note

   The difference between choosing System Variables, ADSB Vehicle or External Sensor is that when the user selects Variable as the custom message type, only system variables will appear when System Variables is selected, only ADSB variables when ADSB Vehicle is selected and only variables related to external sensors if External Sensor is selected.

2. When it is already added, the following options are available to configure a custom message:



   • Endianness: Depending on the order in which the device outputs the message, it is possible to select:

     • Big endian: Set the value from left to right.
     • Little endian: Set the value from right to left.
     • Mixed endian: Some devices use this format. If users need to configure it, please contact the support team (create a ticket in the customer's Joint Collaboration Framework; for more information, see Tickets section of the JCF manual).

   • Period: It is the inverse of the send frequency.

   • Delay: It is a delay applied before sending the message. This serves to send messages with the same period without overloading the serial bus.

3. To create the structure of the message, click on the edit message button ( icon) and then press the icon to add fields to it.

   The following type of messages are available to configure a structure: Variable, Checksum, Matcher, Skip and Parse ASCII.

   The configuration of each structure is covered in Custom Messages types - Input/Output section of the 1x PDI Builder user manual.

CAN I/O

A CAN (Controller Area Network) Bus is a robust standard communication protocol used for vehicles. MC110 is equipped with two distinct CAN buses that can be configured independently:

• CAN B (Classic CAN): A standard classic CAN bus. The configuration for this port, such as its Baudrate and reception Mailboxes, is managed within this CAN I/O panel.
• CAN A (CAN FD): A CAN bus with Flexible Data-Rate (FD) capability, allowing for higher speeds and larger data frames. The configuration for this port is managed in the CAN-FD A Setup panel.

The structure of a CAN message can be seen in the following image:

Only the ID is introduced in the system, the rest of the message layout is already coded. The data field is built by the user to send, and parsed when received.

Configuration

This menu allows the configuration of the CAN inputs and outputs.

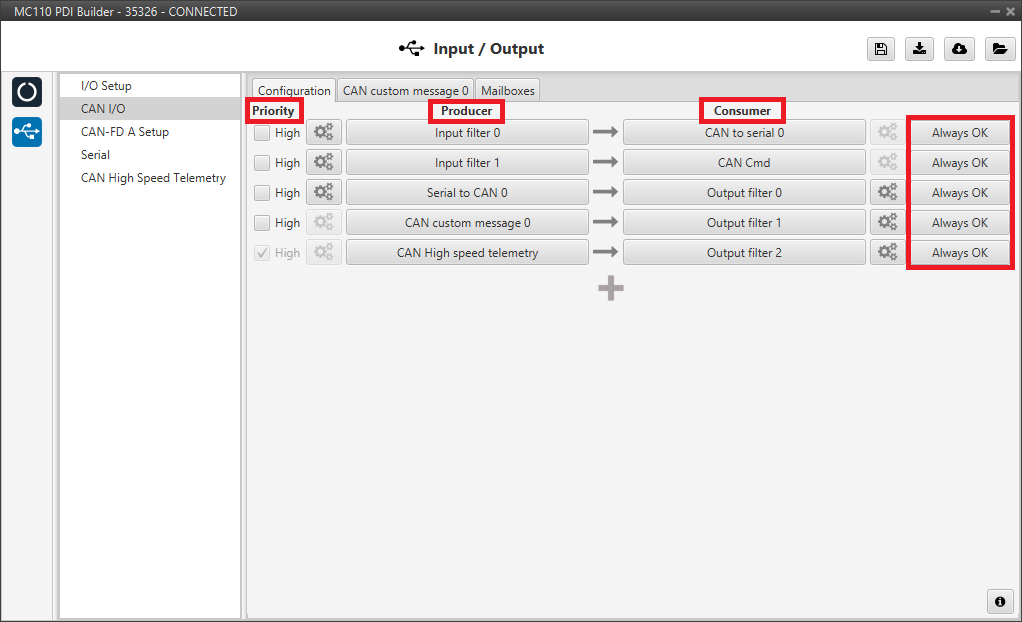

In this menu, the user can find the same 'columns' (Priority, Producer, Consumer and Bit), as well as the "Add a New Row" option, as in the I/O Setup panel.

MC110 has the following list of producers:

• Input Filter: Those CAN messages received in one filter can no longer be received in subsequent filters.

  The following parameters need to be configured by clicking on :



  • Ports: It is required to configure the CAN bus from which it listens, the user can select between CAN A, CAN B or both at a time.
  • Id: CAN Id must be set and it is used to identify messages. The value set has to be decimal format.

  • Mask: A CAN Id mask can be set to filter messages. The mask marks which bits of the message id (in binary) are matched.

    For example, to admit standard Ids (11 bits) from 8 to 11 (100 to 111 in binary) the user should set the mask to binary 11111111100, that is 2044 in decimal.

    Warning

    Make sure that mask is set properly to be able to receive the desired CAN messages. The mask should be 11 bits for Standard frame format and 29 bits for Extended frame format. More information about this can be found in How to calculate a mask - FAQ section of this manual.

  • Filter type: The available options are Standard (frame format with a 11-bit identifier), Extended (frame format with a 29-bit identifier) and Both.

• Serial to CAN: Serial messages through CAN output, it has to be connected to I/O Setup consumer. It can be configured in , a pop-up window will appear:

  Warning

  For correct communication, mark it as High priority (with the Priority checkbox).



  • Id: CAN Id must be set and it is used to identify messages. The value set has to be decimal format.
  • Extended: If it is enabled, the frame format will be 'Extended', i.e. with a 29-bit identifier. Otherwise, the frame format 'Standard' (11-bit identifier) is set by default.
  • Time out: This is the threshold time between receptions to consider that it is not being received correctly.

• CAN custom message 0: CAN custom messages transmission. They are configured in the next section: CAN custom message.

• CAN High speed telemetry: Telemetry messages sent via CAN faster than normal. They are configured in the next section: CAN High Speed Telemetry.
• IPC Diagnostics data sender: Transmits a predefined CAN message containing internal diagnostic data. It is used for advanced monitoring and debugging purposes.
• Motor Performance Status: Transmits a predefined CAN message that summarizes the motor's performance status. It is designed to provide a high-level overview of the motor's state.

The consumers are explained in the following list:

• Output Filter: CAN output filters. The user can select between CAN A, CAN B or both at a time in .



• CAN to Serial: This undoes the 'Serial to CAN' action, it has to be connected to I/O Setup producer.

  Warning

  For correct communication, mark it as High priority (with the Priority checkbox).

• CAN Cmd: This is the input ESC expects to command RPM to the motor. It has to be connected to an Input Filter.

  Warning

  This configuration is already done by default. If the user changes this ID, make sure that the ID of the mailboxes also matches.





CAN custom message

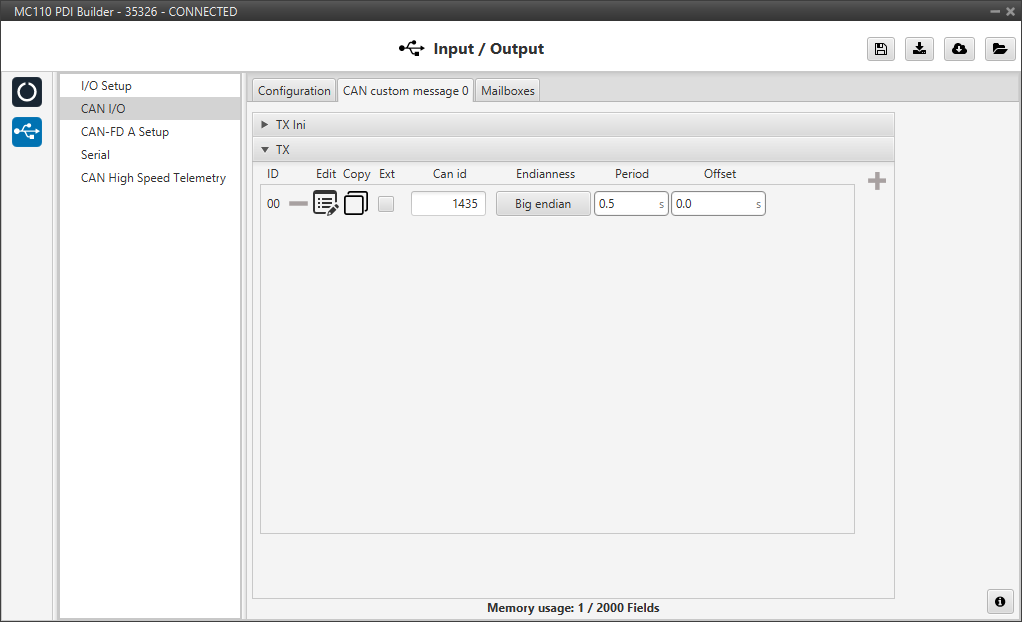

In the CAN custom message tab, the user chooses the variables to be sent over the CAN buses. The following elements can be configured:

• TX Ini: Used to configure transmitted messages that are only sent once at the beginning of the operation (sent when the MC110 boots up). They can be used to initialize some devices.
• TX: Used to configure transmitted messages.

Since this section works in a similar way to the CAN Custom Message configuration in the 1x PDI Builder software, the explanation to configure the telemetry messages via CAN can be found in the CAN Setup - Input/Output section of the 1x PDI Builder user manual.

Mailboxes

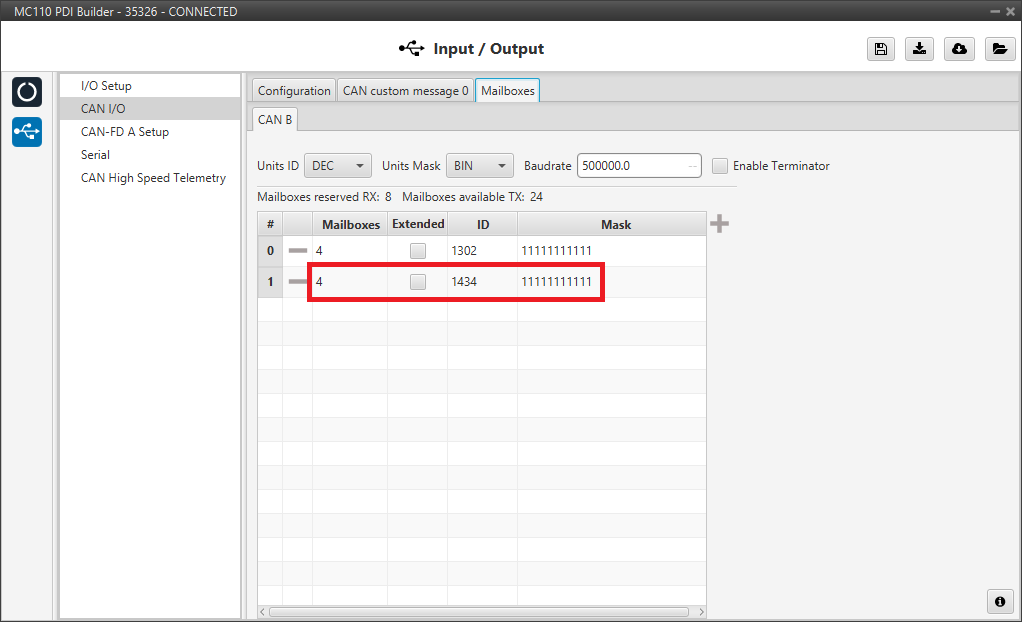

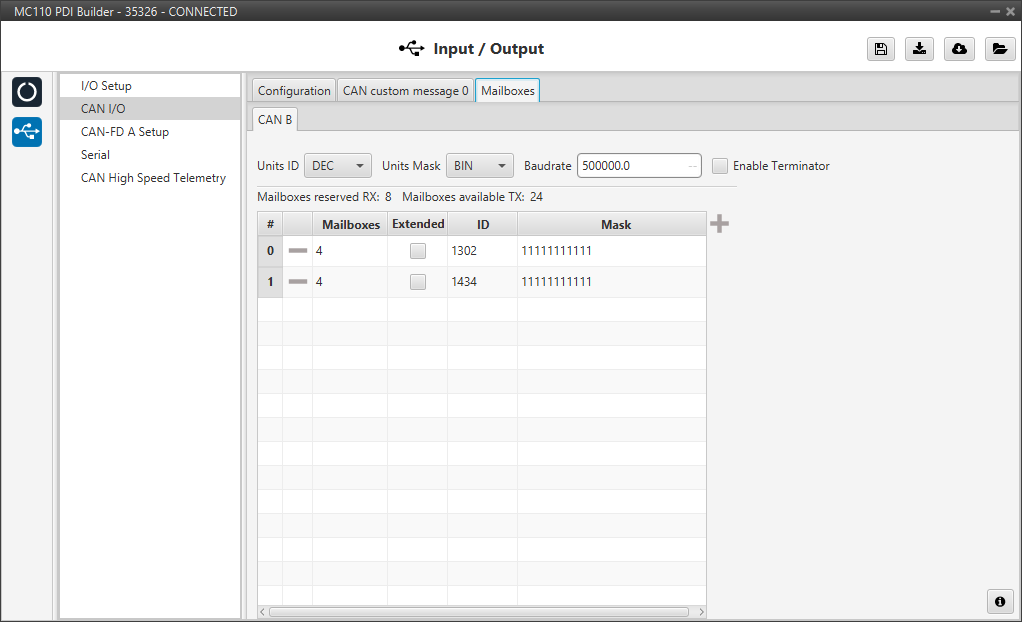

Main screen to configure baudrate and reception mailboxes of the CAN B.

More information about Mailboxes can be found in the Mailboxes - Input/Output section of the 1x PDI Builder user manual.

CAN-FD A Setup

This section is used to configure the CAN FD (Flexible Data-Rate) bus for Port A. CAN FD is an evolution of classic CAN that allows for higher speeds and larger data frames.

The configuration is split into two main parts:

Mailboxes

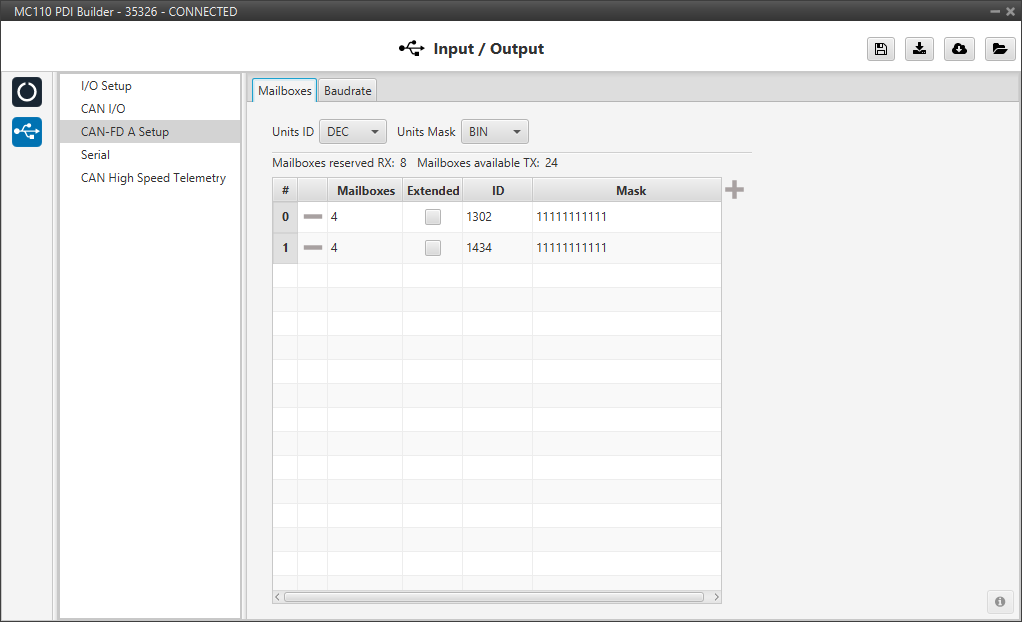

This screen is used to configure the reception mailboxes for the CAN FD bus. The interface and function are similar to the Classic CAN mailboxes, allowing for the setup of hardware filters for incoming messages.

For more detailed information on configuring mailboxes, please see the Mailboxes - Input/Output section of the 1x PDI Builder user manual.

Note that unlike the classic CAN configuration, the Baudrate settings for CAN FD are located in a separate tab.

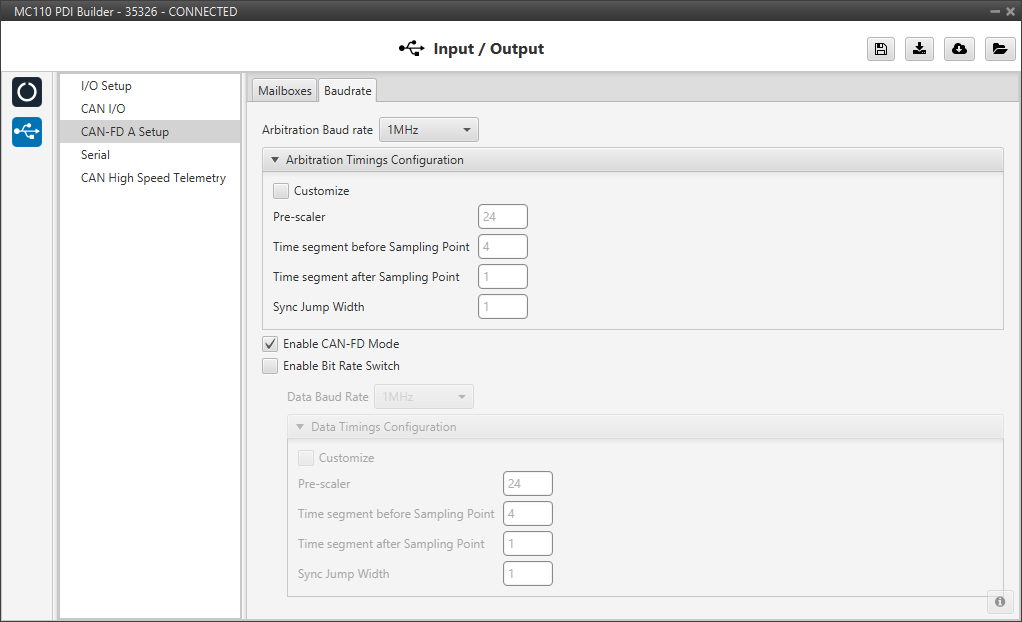

Baudrate

This tab is essential for configuring the main feature of CAN FD: its ability to operate at two different speeds.

Arbitration Rate (Base Speed)

This part sets the standard communication speed for the bus.

• Arbitration Baud rate: This dropdown sets the base speed (e.g., 1MHz) used for bus negotiation. This rate must be the same for all devices on the network to ensure reliable communication.
• Arbitration Timings Configuration: These optional parameters can be configured by checking the Customize box. These are advanced settings for fine-tuning the bus timing. They typically do not need to be modified.

Data Rate (High Speed)

This part enables the high-speed data transfer feature of CAN FD.

• Enable CAN-FD Mode: This checkbox must be activated to use CAN FD features, such as larger 64-byte data frames.

• Enable Bit Rate Switch: Activates the "dual speed" function, allowing the bus to accelerate during the data phase of the message.

  By activating the checkbox, the following parameters will be available:

  • Data Baud Rate: This dropdown sets the higher speed that will be used for the fast data transmission phase.
  • Data Timings Configuration: These optional parameters can be configured by checking the Customize box. They are advanced settings for the high-speed data phase.

Serial

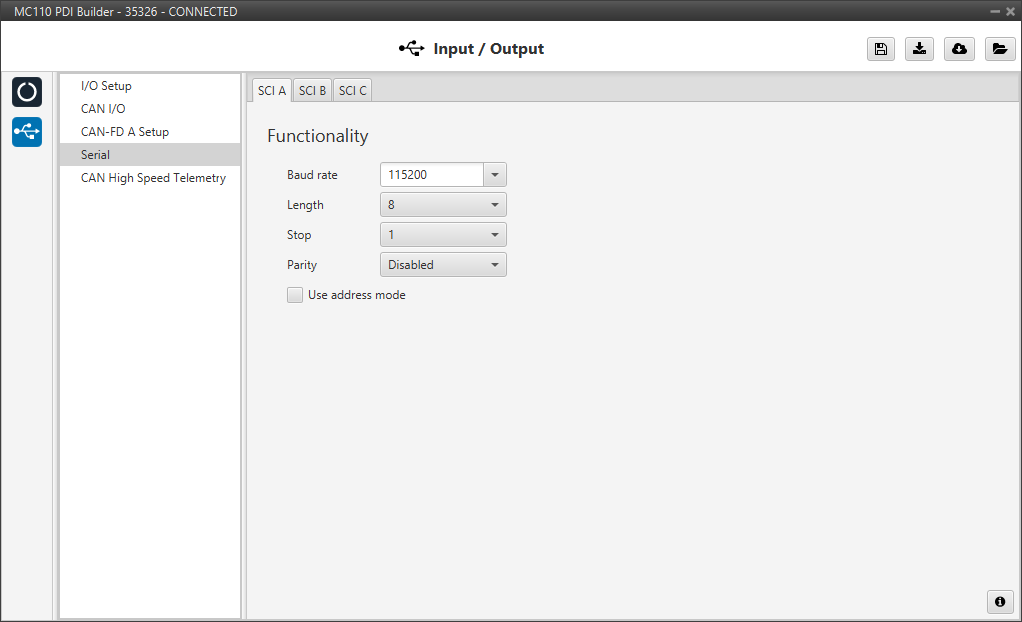

MC110 can use up to three serial peripherals (SCI A, SCI B and SCI C). Serial ports A, B and C parameters can be edited in this menu to fit the serial protocol requirements.

• Baudrate: This field specifies how fast data is sent over a serial line.
• Length: Defines the number of data bits for each character: 4 to 8 bits.
• Stop: Number of stop bits sent at the end of each character: 1, 1.5 or 2.

• Parity: Method to detect errors during transmission. When parity is used with a serial port, an extra data bit will be sent with each data character. The bits of each character (including parity bit) will be even or odd according to parity mode (odd, even or disabled).

• Use address mode: 9-bit data framing uses the bit typically associated with parity error detection to identify address messages. Sent serial data that does not have the address bit set will be ignored (unless the device had previously identified an address message associated with it). This option can be disabled or enabled.

CAN High Speed Telemetry

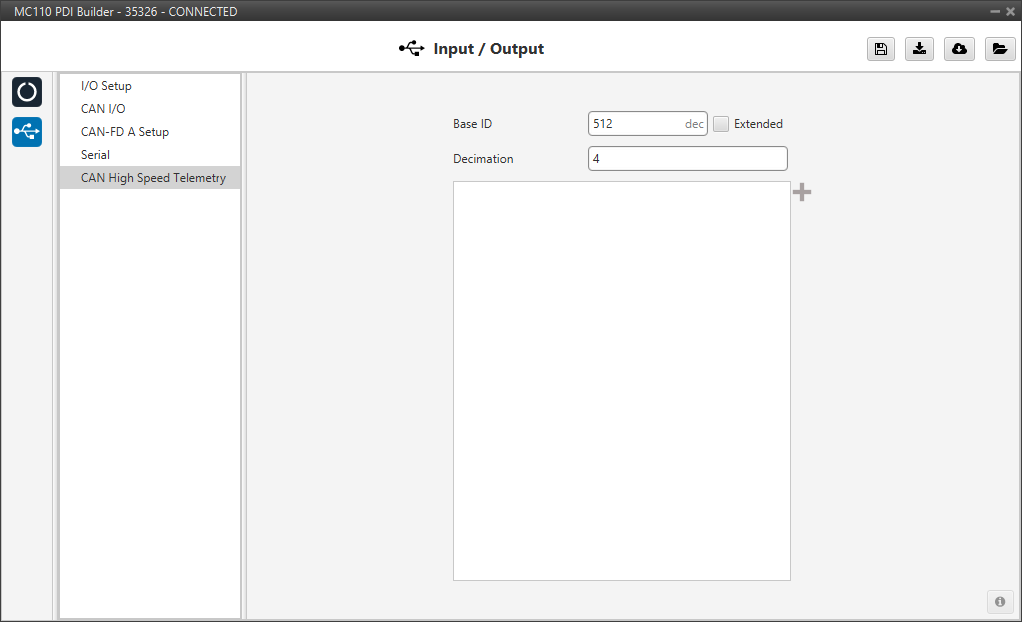

MC110 is equipped with special CAN telemetry, which is faster than the regular one. This is intended to monitor all RPM-dependent variables that can be crucial for tuning the user's ESC during the initial stages.

For instance, seeing the electrical angle can be extremely difficult with a low sampling rate at high RPMs and as a consequence, tuning the observer gain can be difficult. Similarly, monitoring the current being measured in each phase can present the same problem and make PI tuning very time consuming.

Only two parameters need to be configured here:

• Base ID: This is the CAN Id associated with the first variable in the list to be used. Subsequent IDs will be reserved according to the variable list.

  • Extended: If enabled, the frame format will be 'Extended', i.e. with a 29-bit identifier. Otherwise, the frame format 'Standard' (11-bit identifier) is set by default.

• Ddecimation (frequency): The number of clock steps the ESC skips before sending a High Speed CAN telemetry packet. The clock step is running at 2kHz.
